The MEG X870E GODLIKE MAX motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors with a larger 64MB BIOS ROM capacity for ultimate compatibility.
- Form Factor: E-ATX
- Socket Type: AM5
- Chipset: AMD X870E
1
di
5
Caricamento in corso...
SKU:
911-7E48-014

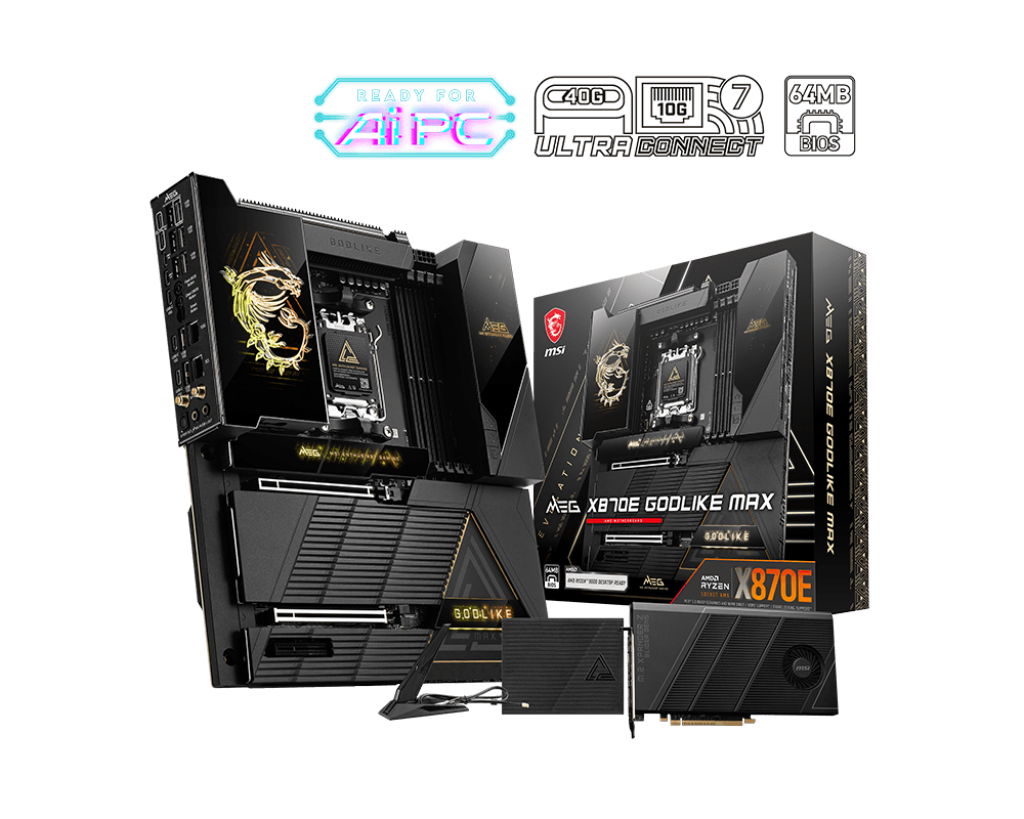

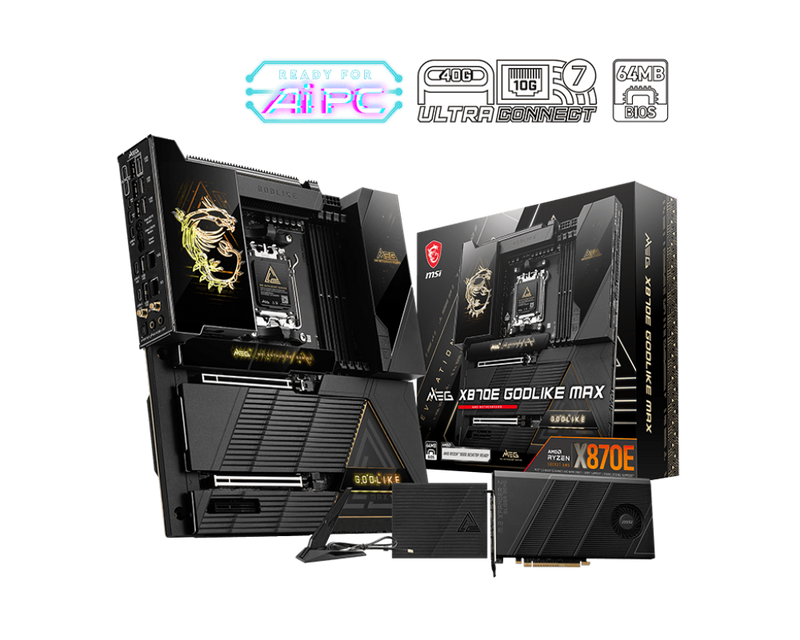

MEG X870E GODLIKE MAX
Price changes in the past 30 days
| 10/14/2026 | €1.679,00 EUR |
€1.679,00
Prezzo unitario
/
Not available
IVA inclusa
Non è stato possibile caricare la disponibilità per il ritiro
Data di consegna
Data di consegna
Punti MSI
Punti MSI
Acquistando questo prodotto, puoi guadagnare circa...
1007
I punti MSI possono essere utilizzati per riscattare premi gratuiti come:
- Buoni Steam/XBOX
- Buoni Carrefour
Garanzia
Garanzia
3 anni di garanzia
Garanzia legale dell’UE
MSI CARE PLUS
You can insure your MSI device for a low fee with MSI Care Plus. MSI offers you warranty coverage even after the standard warranty period has expired. Benefits include:
- Less than 29.00 PLN/month for a one-year warranty extension.
- Priority repair processing.
- Coverage for hardware repairs, including parts replacement.
- Direct support from an MSI expert.
REQUIREMENT
- The Extended Warranty Package is available for products purchased after 2021.
- The MSI Extended Warranty Package is available only to customers who purchased their MSI products in Poland.
- Proof of purchase for the MSI device is required; this may be a copy of the invoice or receipt.
- The product must be registered and the extended warranty activated online within one month of purchase.
- If the extended warranty package is not registered and activated after purchase, it may be returned within 14 days of purchase.
Activating the MSI Warranty Extension Package
STEP 1
BECOME AN MSI MEMBER
Visit the MSI Member Center at https://account.msi.com/login and click "Members". | Follow the instructions on the page to become an MSI member.
STEP 2
REGISTER YOUR MSI PRODUCT
Log in to the MSI member site and click "Product Registration" in the left-hand menu to register your product by filling in the required information. If you have already registered your product, proceed to step 3.
STEP 3
ACTIVATE WARRANTY EXTENSION
Go to the MSI Member Center, click the "Activate MSI Care Plus" option in the left-hand menu, and follow these steps:
- Select the registered product for which you want to obtain the warranty extension.
- Enter the service code and active password from the digital warranty extension card you purchased.
- Click "Activate" to complete the process.
Please review the full terms of use before purchasing the MSI Care Plus warranty extension. If you need assistance with the activation process, please contact us by phone or email.
(+48) 519 513 914
customerservice.it-store@msi.com
MEG X870E GODLIKE MAX
€1.679,00
Prezzo unitario
/
Not available
Offerta
Beyond the Norm, Meet GODLIKE

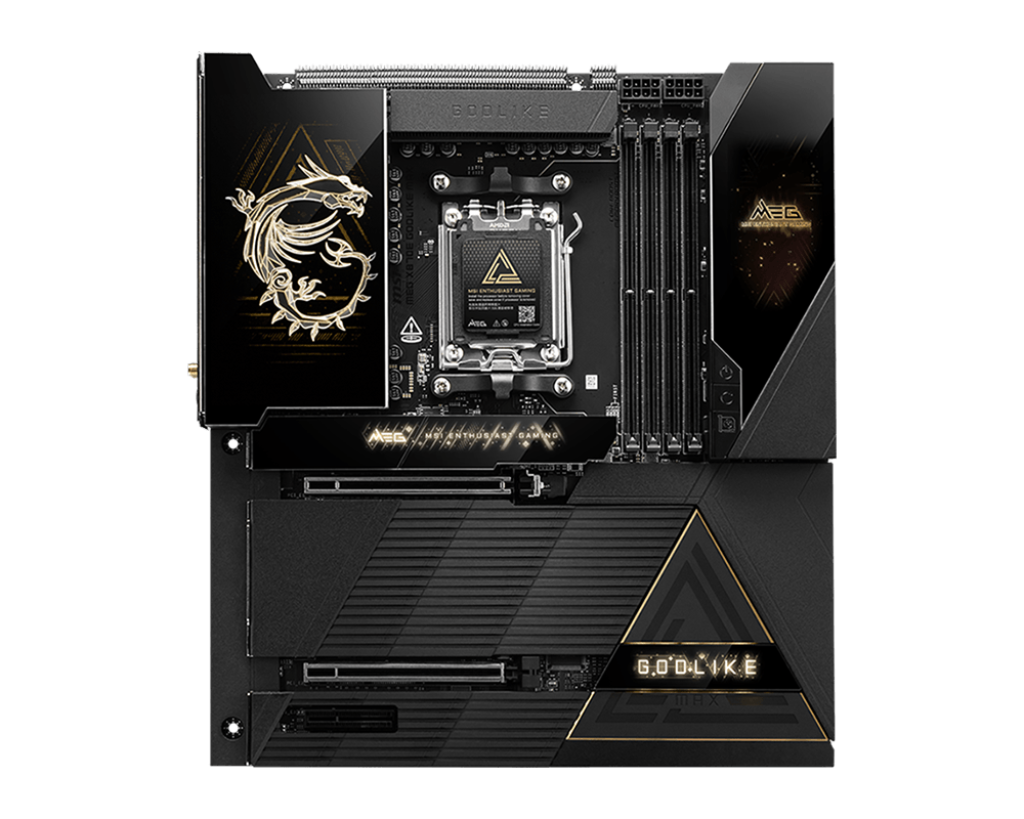

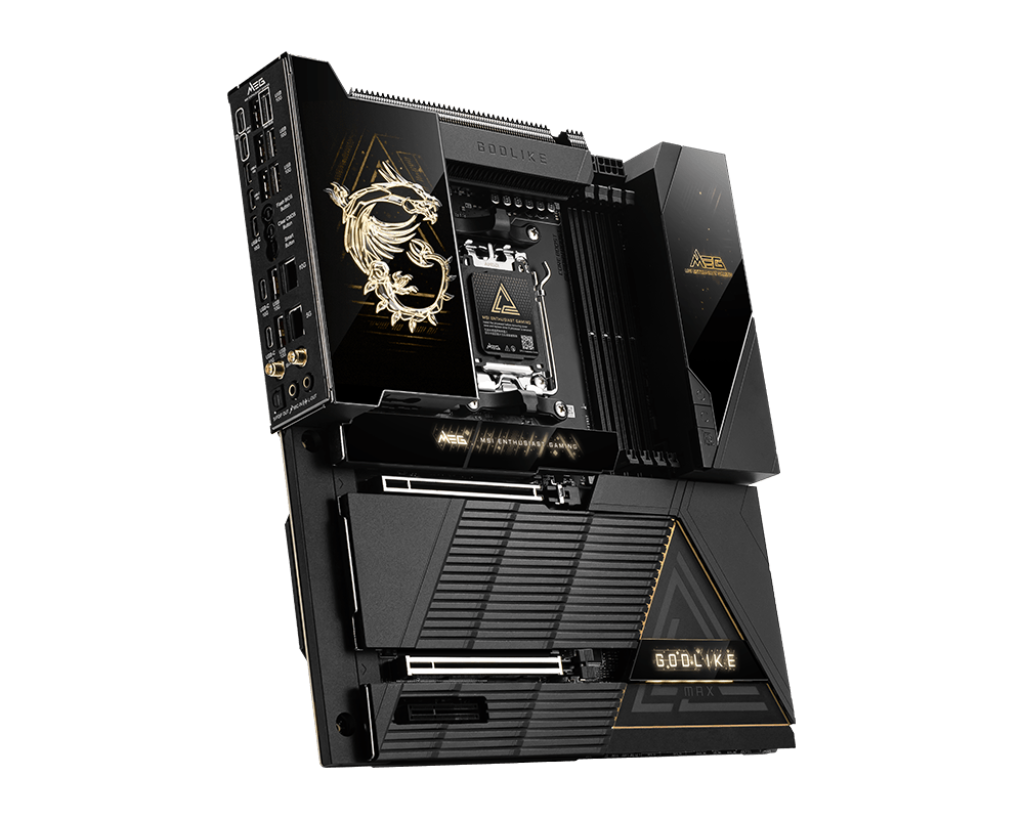

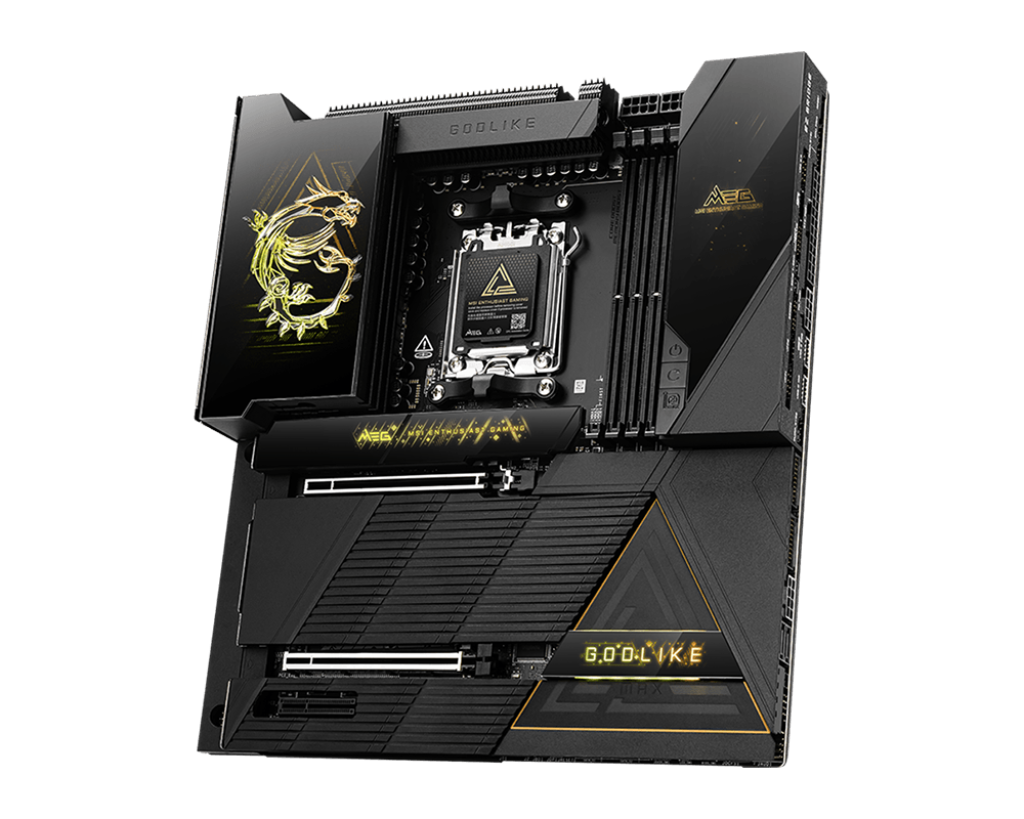

Vivi il massimo dell’innovazione con MEG X870E GODLIKE MAX. Questa scheda madre E-ATX si distingue per il dissipatore nero scuro con vetro temperato integrato dal taglio cristallino, un drago tridimensionale e l’innovativo Dynamic Dashboard III. Basata sul chipset AMD X870E, supporta i processori Ryzen Serie 9000/8000/7000 e dispone di una ROM BIOS da 64 MB, un sistema di alimentazione della CPU a 24 fasi, PCIe 5.0, LAN 10G + 5G, Wi-Fi 7, sistema di raffreddamento premium Frozr e design EZ DIY.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Dynamic Dashboard III & EZ Link
Dynamic Dashboard III: A built-in 3.99-inch full-color dynamic LCD panel offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience.
EZ Bridge: Besides serving as a display panel, the Dynamic Dashboard functions as a versatile bridge, providing onboard boot, reset, EZ PCIe Release Buttons, and EZ Digi-Debug LED for easier system management and troubleshooting.
EZ Link: The GODLIKE-exclusive EZ Link design consolidates most of the case front panel, fan, and RGB headers into the EZ Bridge and EZ Control Hub. With magnetic design, it simplifies installation and creates a cleaner aesthetic.
Ultra Power+ 24 Duet Rail Power System with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MEG X870E GODLIKE MAX is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 24 Duet Rail Power System with 110A SPS
- 2-Phase SOC Power
- 1-Phase MISC Power
Frozr Design
Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, Double-sided M.2 Shield Frozr, and a 10-layer server-grade PCB with 2oz of thickened copper for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
M.2 XPANDER-Z SLIDER GEN5
The MEG X870E GODLIKE MAX comes with the all-new M.2 XPANDER-Z SLIDER GEN5 accessory card, providing two extra Gen5 x4 128Gbps M.2 slots for more high-speed storage expansion options.
EZ Slide Design: Make storage upgrade effortless by letting you access your M.2 SSDs from the rear I/O without opening your case.
One Slot Design: No conflict with bulky, thick graphics cards, while ensuring improved airflow for better cooling efficiency.
70 mm Double-ball Bearing Fan: Stronger airflow, extended gaming sessions, and peak performance for enthusiast gamers and prosumers.
LED Indicator: The 4 x indicator LEDs lets you know if the SSD is detected and when it’s transferring files.
Gen5 M.2 Connectors
The MEG X870E GODLIKE MAX motherboard features MSI's M.2 slots:
- 2 x Gen5 x4 128Gbps slots (with double-sided M.2 Shield Frozr)
- 2 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
- 1 x Gen4 x2 32Gbps slot (with double-sided M.2 Shield Frozr)
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor II** and EZ PCIe Release)
- 1 x PCIe 5.0/4.0/3.0 x8 slot* (with Steel Armor**)
- 1 x PCIe 4.0/3.0 x4 slot*
*Supports x16/x0/x4, x8/x8/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Ultra Connect
10G Super LAN: Premium Marvell 10Gbps LAN & Realtek 5Gbps LAN deliver an utmost network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@120Hz display support*.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
MEG X870E GODLIKE MAX
- Supporta processori desktop AMD Ryzen™ serie 9000 / 8000 / 7000
- Supporta memorie DDR5, Dual Channel DDR5 9200+MT/s (OC)
- Dynamic Dashboard III: un display LCD da 3,99 pollici per il monitoraggio hardware in tempo reale, la risoluzione dei problemi, gli aggiornamenti del BIOS e opzioni di visualizzazione personalizzate, per migliorare l'esperienza utente complessiva.
- M.2 XPANDER-Z SLIDER GEN5: la scheda di espansione M.2 dallo spessore di un solo slot offre due slot M.2 Gen5 ad alta velocità, e il design EZ Slide rende l'upgrade degli SSD semplicissimo.
- Ultra Performance: 24+2+1 Duet Rail Power System, SPS da 110A, OC Engine, doppio connettore di alimentazione CPU a 8 pin, Core Boost, Memory Boost, PCB a 10 strati realizzato in rame ispessito da 2oz e materiali di livello server.
- Frozr Guard: design delle alette ondulato, Direct Touch Cross Heat-pipe, MOSFET Baseplate, thermal pad da 9W/mK, Double-Sided M.2 Shield Frozr e software Frozr AI garantiscono le massime prestazioni con temperature ridotte.
- EZ DIY: BIOS ROM da 64MB, EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II ed EZ Antenna.
- Ultra Connect: LAN 10G + LAN 5G, soluzione Wi-Fi 7 a piena velocità e USB4 - la soluzione più recente per l'uso professionale e multimediale, che garantisce connessioni di rete e trasferimento dati sicuri, stabili e ad alta velocità.
- Lightning Fast Game Experience: slot PCIe 5.0, Lightning Gen 5 x4 M.2, USB 20G frontale con USB Power Delivery da 60W.
- Audio Boost 5 HD: la soluzione audio definitiva, con il più recente processore audio premium ALC4082 abbinato a DAC e amplificatore ESS, per un'esperienza sonora mozzafiato.
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 7x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card. ** Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. **RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors. |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4. ** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. |
| LAN | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x PUMP_SYS Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| LED FEATURE | 1x Dynamic Dashboard III 1x EZ Digi-Debug LED 1x EZ LED Control switch |

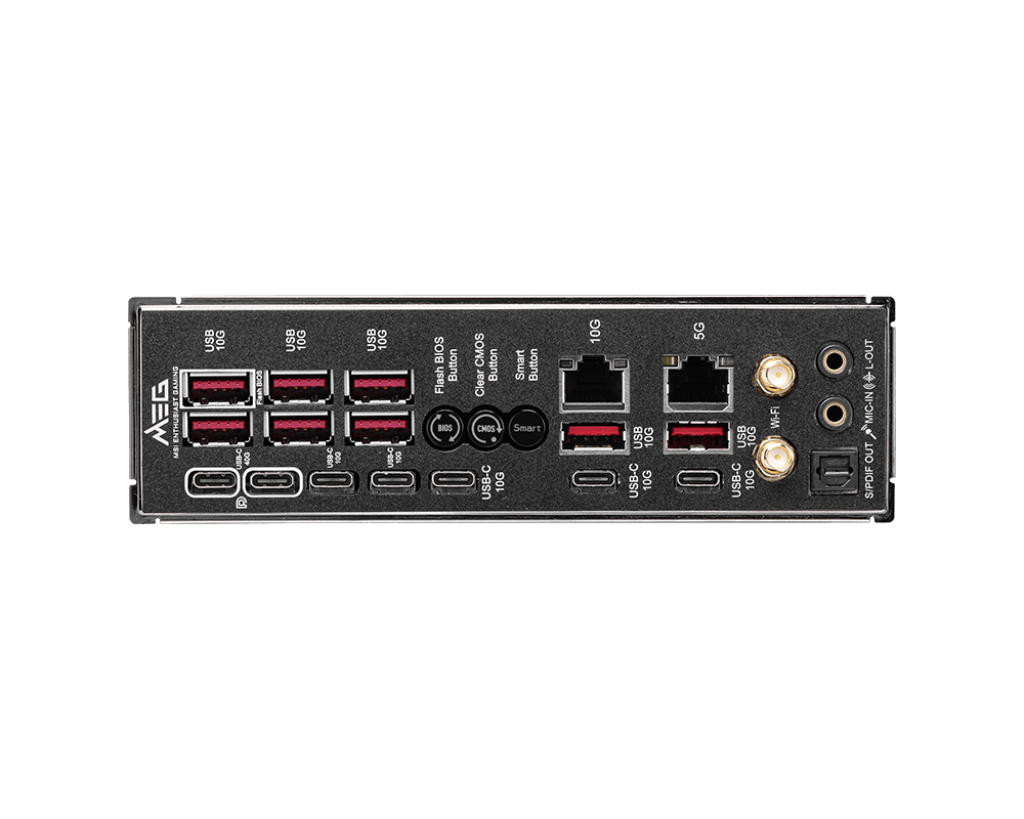

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| BOX CONTENT |  |
| PCB Info | E-ATX 277mmx304.8mm |
