SKU: 911-7D99-060

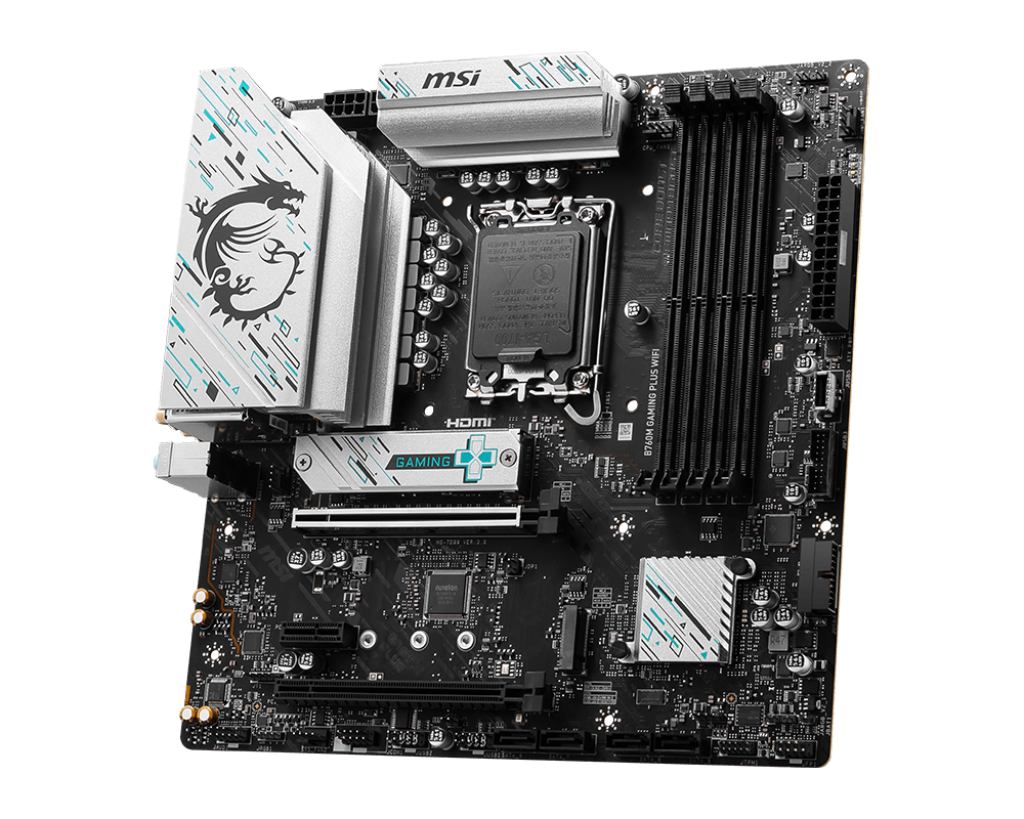

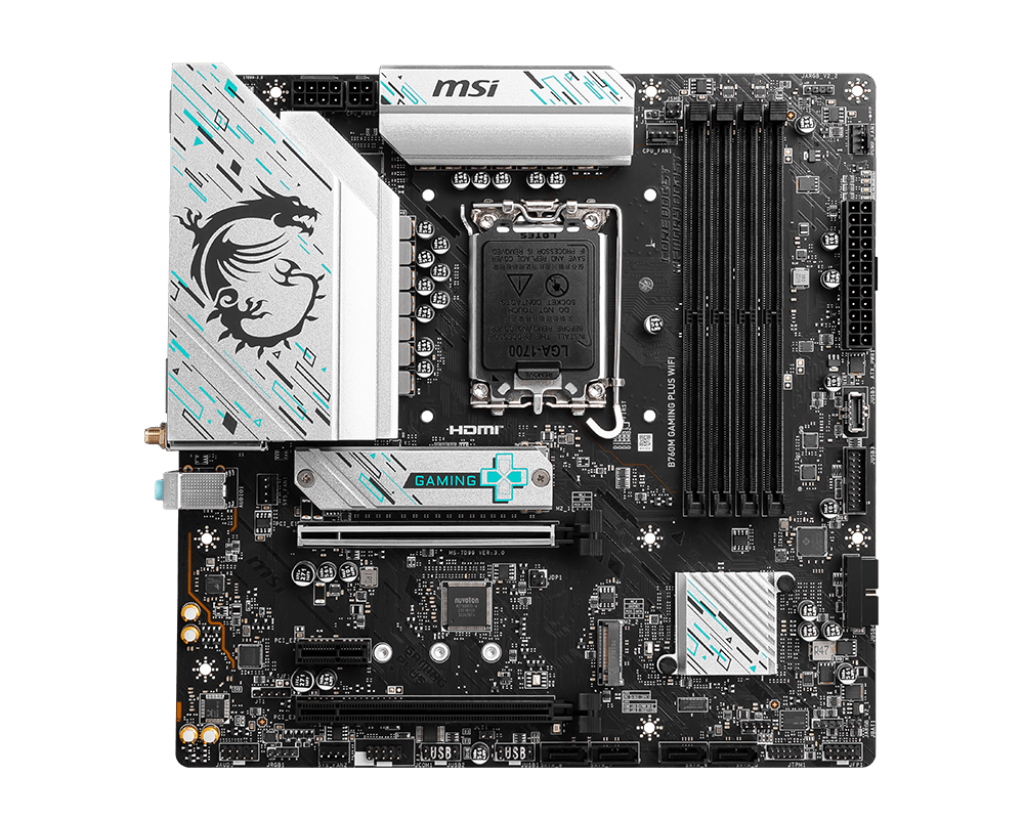

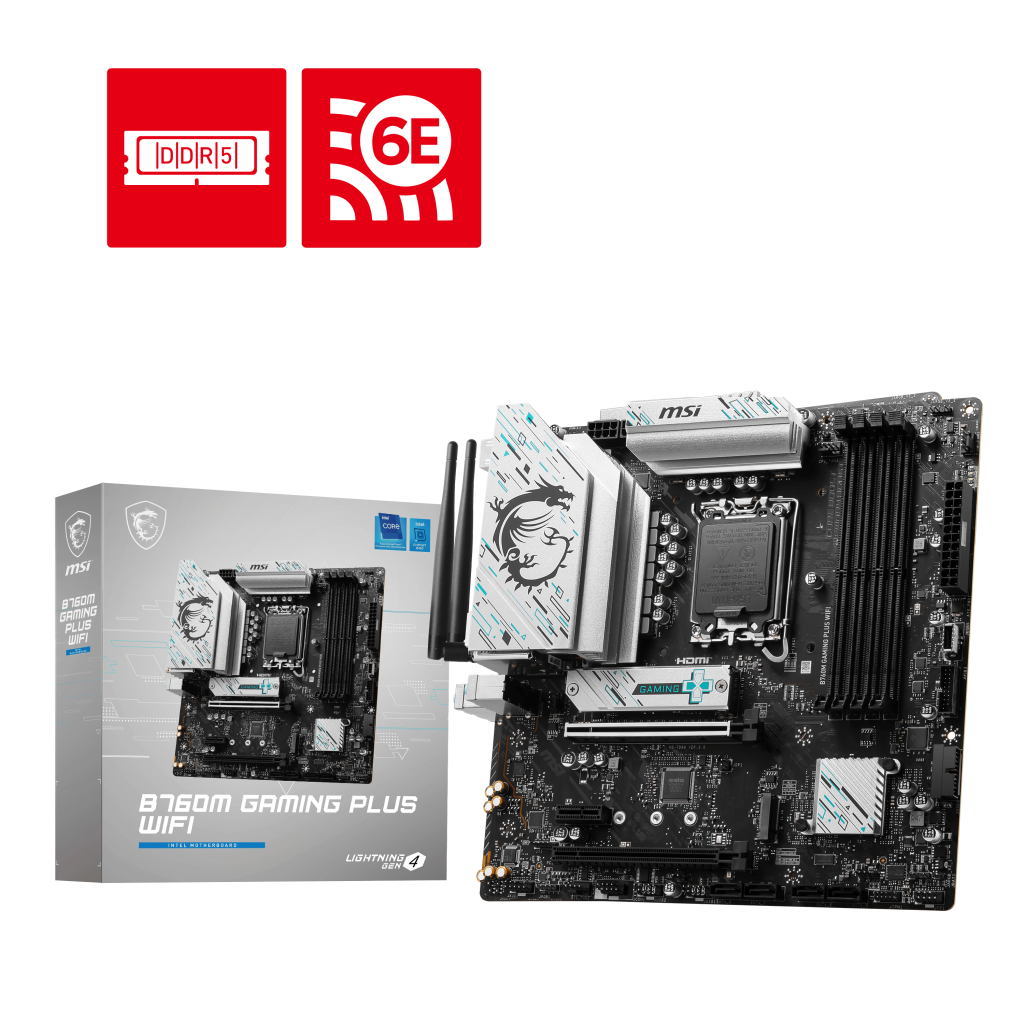

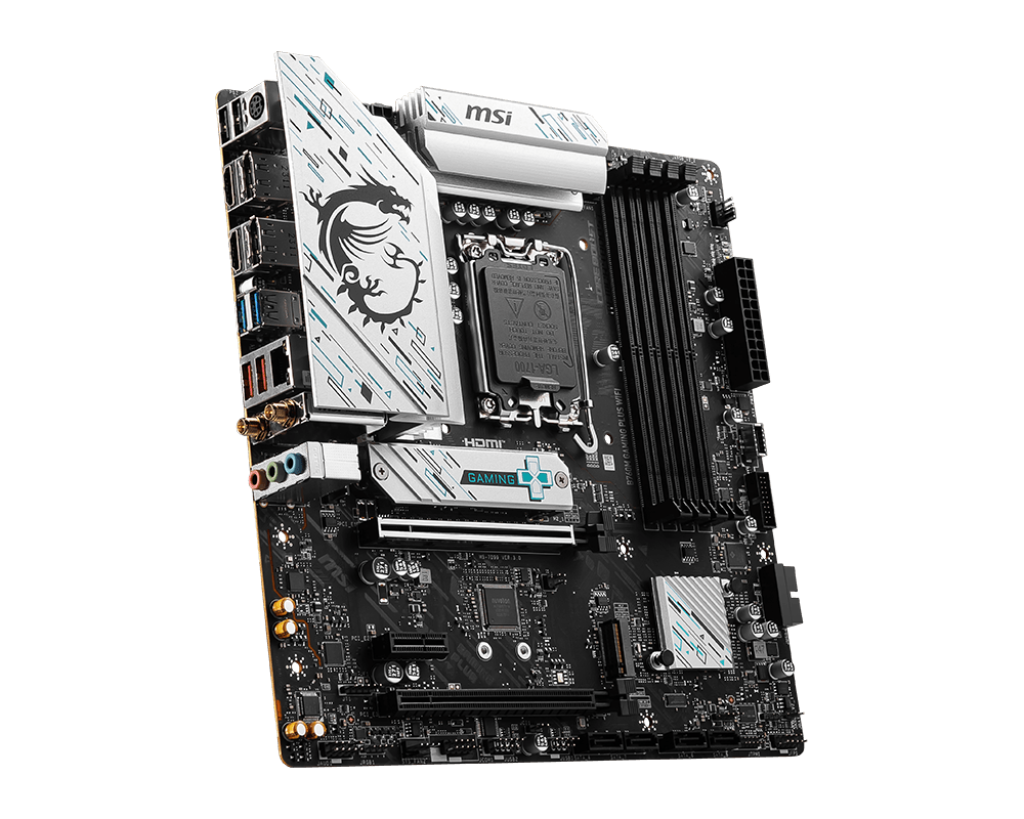

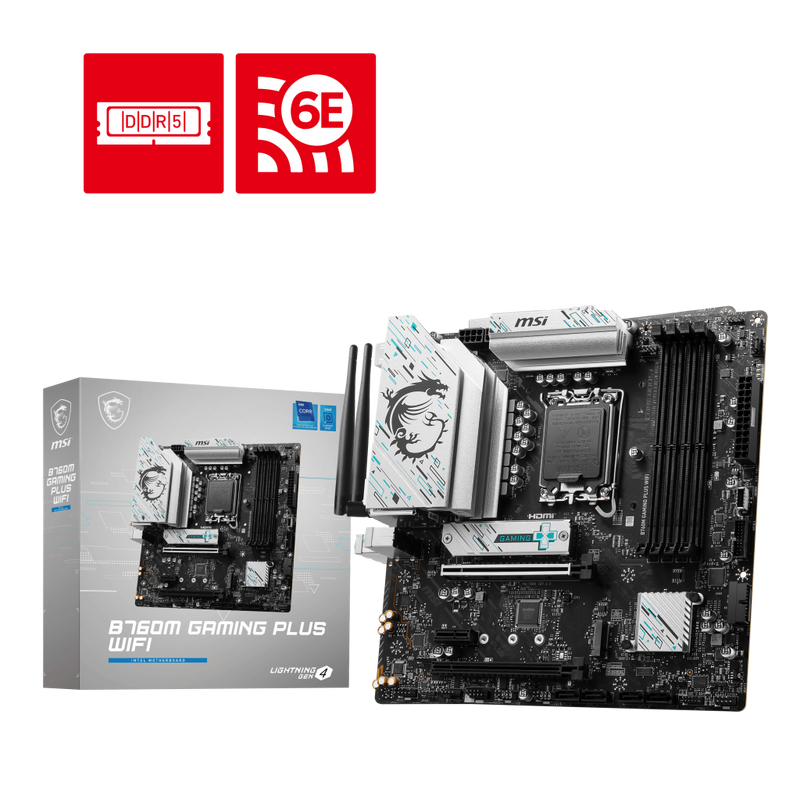

B760M GAMING PLUS WIFI | MSI Scheda Madre

Variazioni di prezzo negli ultimi 30 giorni

07/09/2026 €137,00 EUR
€137,00
IVA inclusa

Delivery date

Punti MSI
Acquistando questo prodotto, puoi guadagnare circa... 82 I punti MSI possono essere utilizzati per riscattare premi gratuiti come:

  • Buoni Steam/XBOX
  • Buoni Carrefour
Maggiori dettagli e condizioni sono disponibili qui. Punti MSI, se stai già partecipando al programma premi MSI.

Garanzia
3 anni di garanzia

Offerta

  • Intel B760
  • Socket 1700
  • DDR5
  • mATX

B760M GAMING PLUS WIFI

  • Supporta processori Intel® Core™ 14a/ 13a/ 12a generazione, Intel® Pentium® Gold e Celeron®< /sup> Processori per socket LGA 1700
  • Supporta la memoria DDR5 a doppio canale 6800+MHz (OC)
  • Design di alimentazione migliorato: sistema di alimentazione Duet 12+1 con P-PAK, connettori di alimentazione CPU a 8 pin + 4 pin, Core Boost, Memory Boost
  • Soluzione termica premium: dissipatore di calore esteso, pad termici MOSFET da 7 W/mK, pad termici choke aggiuntivi realizzati per un sistema ad alte prestazioni e un'esperienza di gioco senza interruzioni
  • Esperienza di gioco fulminea: slot PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • LAN 2.5G con soluzione Wi-Fi 6E: soluzione di rete aggiornata per uso professionale e multimediale. Fornisce una connessione di rete sicura, stabile e veloce
  • PCB di alta qualità a 6 strati realizzato in rame addensato da 2 once
  • Potenziamento audio: premia le tue orecchie con una qualità del suono di livello studio per un'esperienza di gioco più coinvolgente
Chipset INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 4x EZ Debug LED

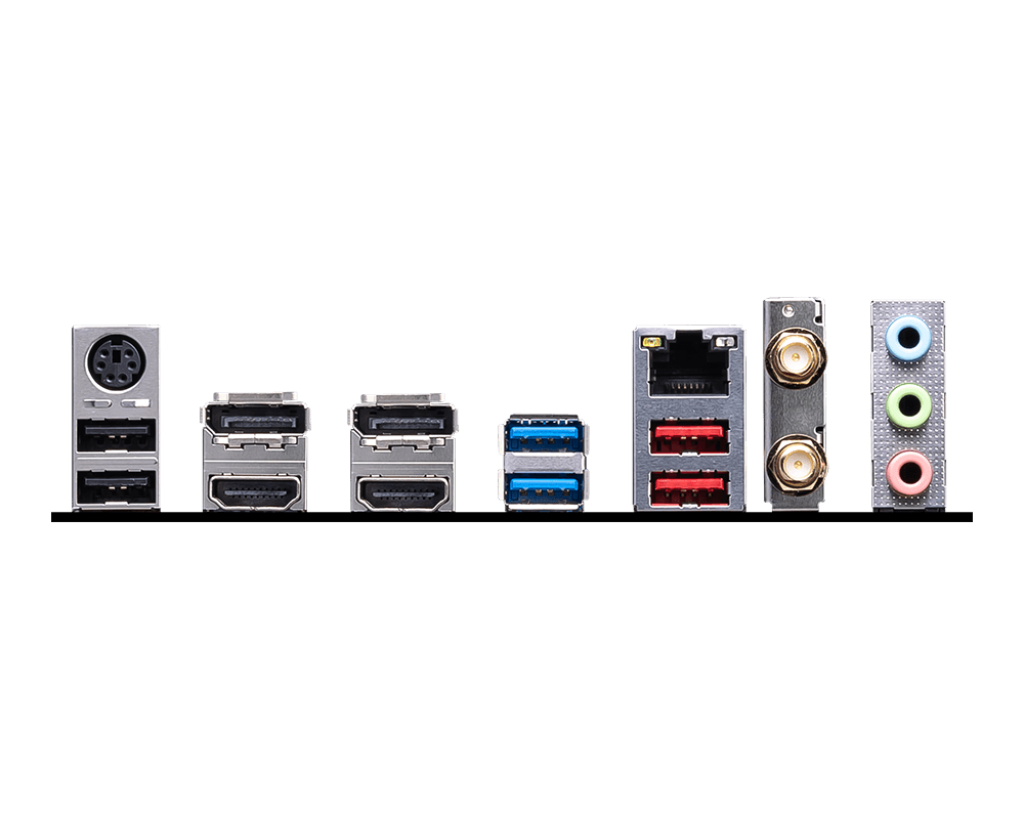

BACK PANEL PORTS
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. USB 2.0
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. Audio Connectors
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
MSI Italia

B760M GAMING PLUS WIFI | MSI Scheda Madre

€137,00

B760M GAMING PLUS WIFI

  • Supporta processori Intel® Core™ 14a/ 13a/ 12a generazione, Intel® Pentium® Gold e Celeron®< /sup> Processori per socket LGA 1700
  • Supporta la memoria DDR5 a doppio canale 6800+MHz (OC)
  • Design di alimentazione migliorato: sistema di alimentazione Duet 12+1 con P-PAK, connettori di alimentazione CPU a 8 pin + 4 pin, Core Boost, Memory Boost
  • Soluzione termica premium: dissipatore di calore esteso, pad termici MOSFET da 7 W/mK, pad termici choke aggiuntivi realizzati per un sistema ad alte prestazioni e un'esperienza di gioco senza interruzioni
  • Esperienza di gioco fulminea: slot PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • LAN 2.5G con soluzione Wi-Fi 6E: soluzione di rete aggiornata per uso professionale e multimediale. Fornisce una connessione di rete sicura, stabile e veloce
  • PCB di alta qualità a 6 strati realizzato in rame addensato da 2 once
  • Potenziamento audio: premia le tue orecchie con una qualità del suono di livello studio per un'esperienza di gioco più coinvolgente
Chipset INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. USB 2.0
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. Audio Connectors
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
